6 Straight Flute HRC55 Carbide Reamer End Mill CNC Reamer Cutters

1.HRC: HRC45 HRC55 HRC58 HRC60 HRC65

2.Coated: AlTiN, TiAlN, TiAISI,TiSiN, TiN, DLC,Nano, Diamond

3.Could be used for the processing of copper, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel

Products Features:

1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer.

2. Smooth and Wide Flute: Smooth and wide flute will remove the cuttings more easily.

3. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten.

4. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved.

Products Detail:

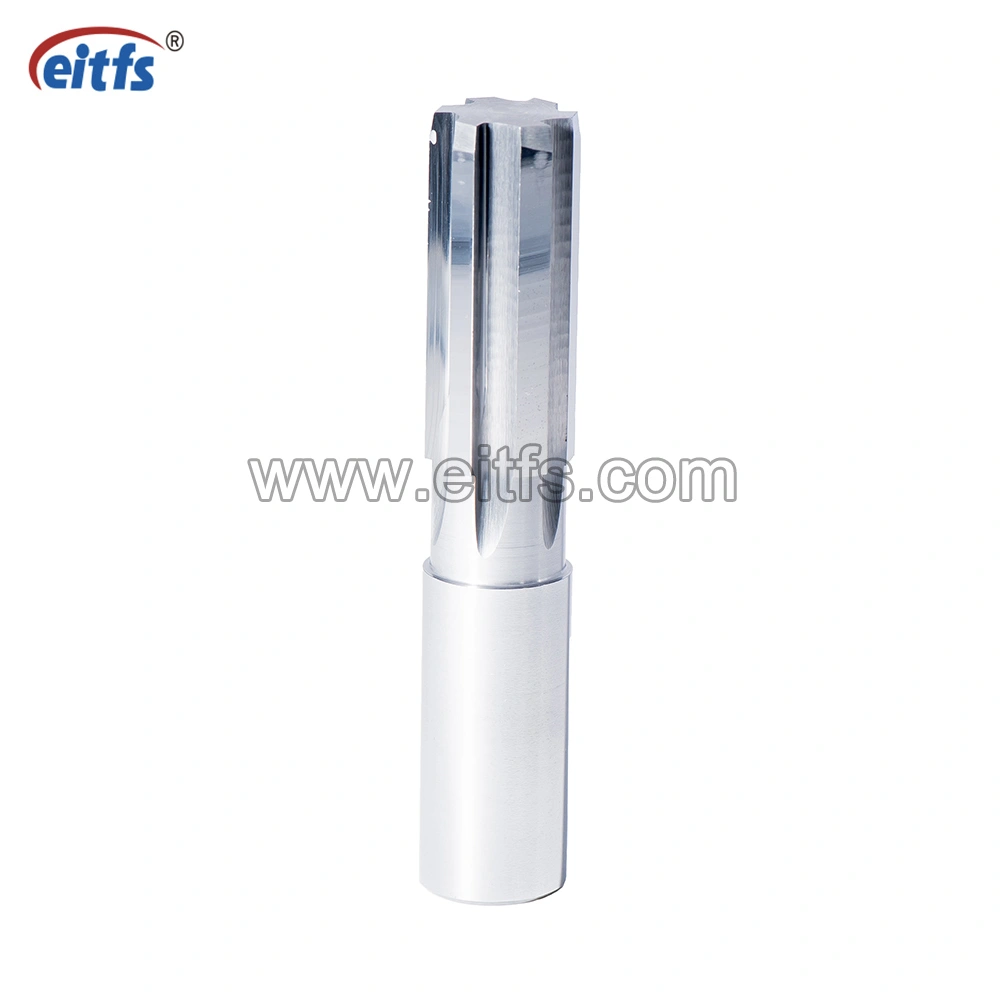

solid carbide straight flute reamer
D	Lc	L	d	Ls	Z
2-2.2	11	57	3	25	4
2.3-2.4	12	57	3	25	4
2.5-3	14	57	3	27	4
3.1-3.4	15	61	3	30	4
3.5-4	15	61	4	30	4
4.1-4.4	19	75	4	32	4
4.5-4.9	21	80	4	35	4
5-5.4	23	86	5	35	6
5.5-5.9	26	93	5	40	6
6-6.9	26	93	6	40	6
7-7.9	31	109	6	45	6
8-8.9	33	117	8	50	6
9-9.9	36	125	8	55	6
10-10.9	38	133	10	60	6
11-11.9	41	142	10	60	6
12	44	151	10	60	6
12.5-13	44	151	10	60	6
13.5-14	47	160	12	65	6
14.5-15	50	162	12	65	6
15.5-16	52	170	12	65	6
16.5-17	54	175	12	65	6
17.5-18	56	182	12	65	6
18.5-19	58	189	16	65	6
19.5-20	60	195	16	65	6
Customized Tools are Acceptable

Our Advantages:

1. Perfect oxidation resistance in high temperature 1100ºC.



2. Abrasion condition of side cutting edge after processing 60m



Our Company:

Changzhou Aitefasi Tool Co., Ltd. founded in 2004, is a high-tech manufacturer specialized in providing High-performance carbide cutting tools. Many high-performance equipments which are from Germany, USA and Switze produce high-quality cnc tools, including:

1. Tungsten Solid Carbide Drill Bits
Inner coolant and outer coolant drill bits.
Support 3XD, 5XD, 8XD, 20XD, even more length and customized accepts.
Twist drill, center drill, bottom drill and other types of drill bits.

2. Tungsten Solid Carbide End Mill
Square end mill, ball nose end mill and other End Mills.

3. Tungsten Solid Carbide Reamer
Twist and straight flute, with high precision and long life.

4. Customized CNC Toolings
Customized as requirements, ODM & OEM accepts.



Exhibition:



FAQ:
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you do the rest payment.

Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, ETC.

Q3. How about your delivery time?
A: Generally, It will take 10-15 days after receiving your advance payment. The specific delivery time depends on theitems and the quantity of your order.

Q4. Do you provide samples ? is it free or extra ?
A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.
custom cutting tools negotiated then we will quote the best sample cost.
