Home > Products > Carbide Twist Drill Bit > 5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel

5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel

Product Description


Super Raw Material

HRC 45HRC 55HRC 60HRC 65
YG10XYL10.2&WF25Germany K44&K40Sandvik H10F
Grain size 0.7 μm,Co10%,Flexural strength 3320N/mm²Grain size 0.6 μm,Co10%,Flexural strength 4000N/mm²Grain size 0.5 μm,Co12%,Flexural strength 4300N/mm²Grain size 0.5 μm,Co10%,Flexural strength 3320N/mm²
Super Coating
CoatingHardness
HV
Thickness
μm
Friction
Coefficient
Oxidation
Temp
Color
AlTiN35002.5-30.3900Black
TiAlN28002.5-30.3900Violet
TiSiN360030.451000Bronze
AlTiSiN400030.41200Blue
TiN25002-30.5600Gold
Details

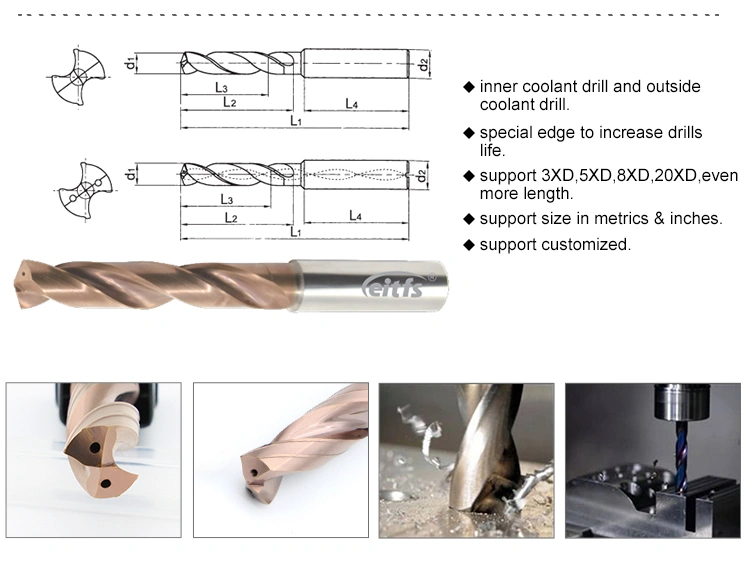

5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel
D1D2L1L2L3L4Coolant
4.00674362936With/Without Inner Coolant
4.50-6.00682443536With/Without Inner Coolant
6.50-8.00891534336With/Without Inner Coolant
8.50-10.0010103614940With/Without Inner Coolant
10.50-12.0012118715645With/Without Inner Coolant
12.50-14.0014124776045With/Without Inner Coolant
14.50-16.0016133836348With/Without Inner Coolant
16.50-18.0018143937148With/Without Inner Coolant
18.50-20.00201531017750With/Without Inner Coolant

Why choose us
1.Super resistance to oxidation of the coating
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel

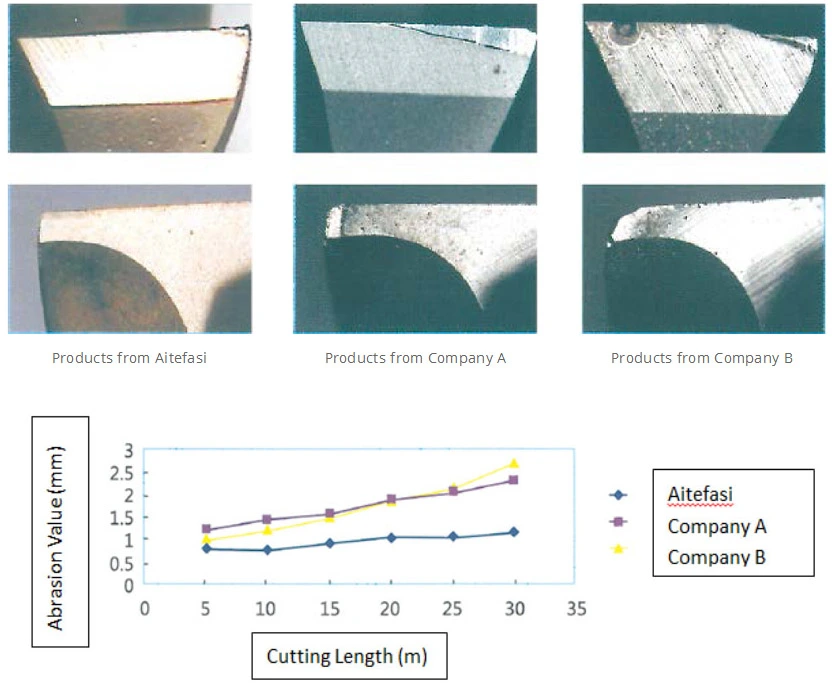

2.Comparison on abrasion of the top cutting edge after processing 60m
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel

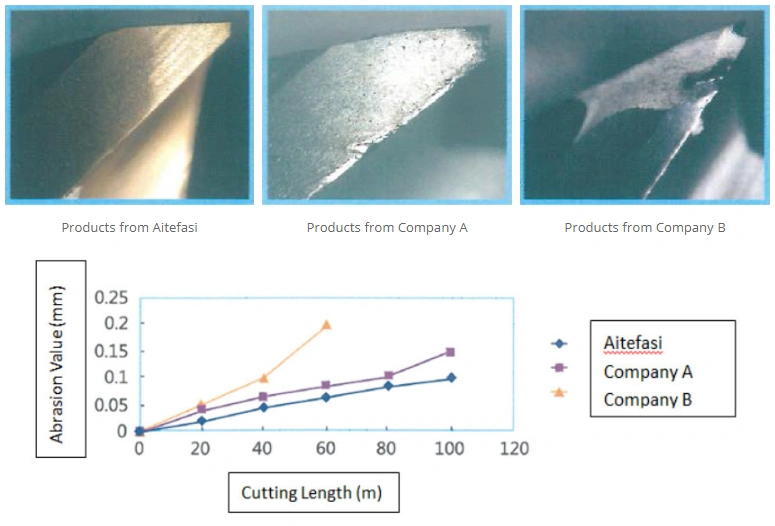

3.Comparison on abrasion of the side cutting edge after processing 60m
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel

Who we are
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel
Packing and delivery
5D Solid Cabide Inner Coolant Drill Bit for Stainless Steel








Contact us if you need more details on Drill Bit. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Carbide Drill Bit、Twist Drill Bit. If these products fail to match your need, please contact us and we would like to provide relevant information.
