HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

Product Description

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits


Products Function:

1.HRC: HRC45 HRC55 HRC58 HRC60 HRC65

2.Coated: AlTiN, TiAlN, TiAISI,TiSiN, TiN, DLC,Nano, Diamond

3.Could be used for the processing of copper, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel

Products Features:

1. Special Designed Drill Tip: Special designed drill tip will increase the Centering Ability and Chip breaker ability. Thus,the processing efficiency will be increased.

2. Much Sharper Cutting Edge: The much sharper cutting edge can decrease the cutting resistance and and torque. The lifetime of tools and machines will be longer.

3. Heat-resistant Coating: With highly heat-resistant HELICA/ALTIN coating, can be used for high-speed processing.

4. Smooth and Wide Flute:Smooth and wide flute will remove the cuttings more easily.

5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten.

6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved.

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits


Products Detail:


1. Super Raw Material

Super Raw Material
HRC 45HRC 55HRC 60HRC 65
YG10XYL10.2&WF25Germany K44&K40Sandvik H10F
Grain size 0.7 μm, Co10%, Flexural strength 3320N/mm²Grain size 0.6 μm, Co10%, Flexural strength 4000N/mm²Grain size 0.5 μm, Co12%,  Flexural strength 4300N/mm²Grain size 0.5 μm, Co10%, Flexural strength 4300N/mm²

2. Super Coating

Super Coating
CoatingHardness
HV
Thickness
μm
Friction
Coefficient
Oxidation
Temp
Color
AlTiN35002.5-30.3900Black
TiAlN28002.5-30.3900Violet
TiSiN360030.451000Bronze
AlTiSiN400030.41200Blue
TiN25002-30.5600Gold

3. Specification

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits
Solid Carbide Drill Bit-8D
d1d2L1L2L3L4Coolant solution
4.00-4.00475454228Outer Coolant
4.50-5.00690545036Outer Coolant
5.50-6.00697605736Outer Coolant
6.50-6.508106696636Outer Coolant
7.00-8.008116797636Outer Coolant
8.50-9.0010131908740Outer Coolant
9.50-10.0010139989540Outer Coolant
10.50-11.001215510910645Outer Coolant
11.50-12.001216311711445Outer Coolant
12.50-14.001418213613345Outer Coolant
14.50-16.001620415515248Outer Coolant
16.50-18.001822317417148Outer Coolant
18.50-20.002024419319050Outer Coolant
20.00-25.0025   56Outer Coolant

Customized Tools are Acceptable


Why Choose Us?

1. Chip breaker ability

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

2. Perfect oxidation resistance in high temperature 1100ºC

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

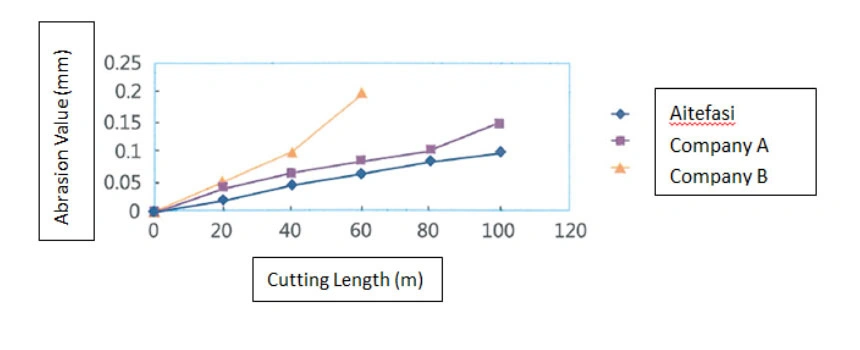

3. Abrasion condition of side cutting edge after processing 60m

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

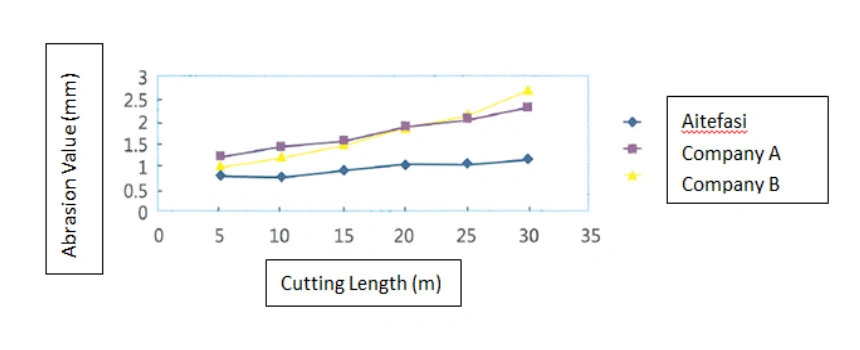

4. Abrasion condition of top cutting edge after processing 60m

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits
Our Company:

Changzhou Aitefasi Tool Co., Ltd. founded in 2004, is a high-tech manufacturer specialized in providing High-performance carbide cutting tools. Many high-performance equipments which are from Germany, USA and Switze produce high-quality cnc tools, including:

1. Tungsten Solid Carbide Drill Bits
Inner coolant and outer coolant drill bits.
Support 3XD, 5XD, 8XD, 20XD, even more length and customized accepts.
Twist drill, center drill, bottom drill and other types of drill bits.

2. Tungsten Solid Carbide End Mill
Square end mill, ball nose end mill and other End Mills.

3. Tungsten Solid Carbide Reamer
Twist and straight flute, with high precision and long life.

4. Customized CNC Toolings
Customized as requirements, ODM & OEM accepts.


What We Have?

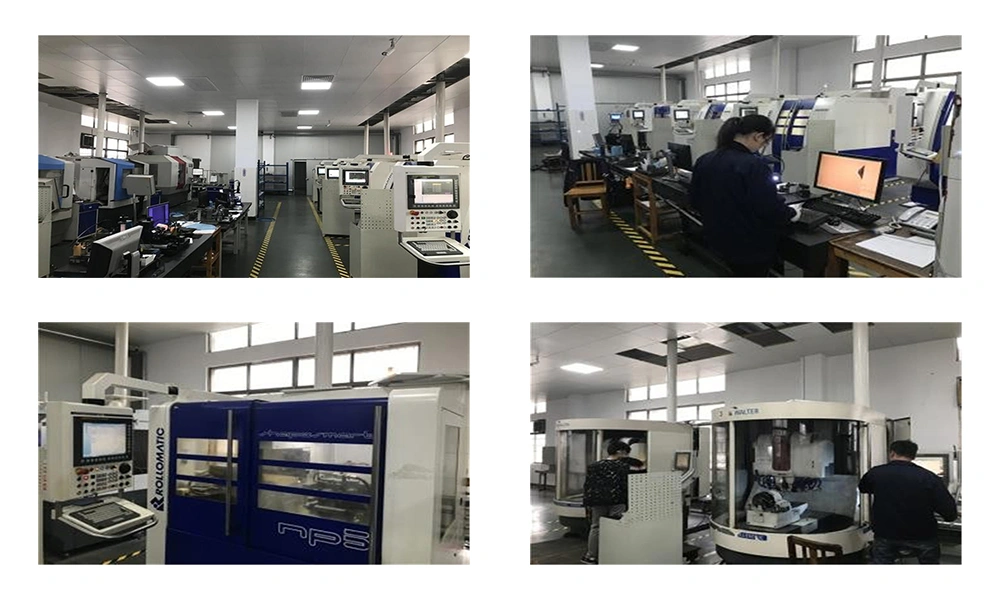

1. Imported production equipment

2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sets Star PTG6 from USA;
2 sets "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

2. Imported inspection equipment

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

3. Strict quality control

Strict quality control process covers every step of production from the raw materials to the finished product, and provide strict quality warranty.


HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

Certification:

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits


Exhibition:

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

Package & Delivery:

HRC55 CNC Machine Tools Tungsten Carbide Outer Coolant Drill Bits

FAQ:

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you do the rest payment.

Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, ETC.

Q3. How about your delivery time?
A: Generally, It will take 10-15 days after receiving your advance payment. The specific delivery time depends on theitems and the quantity of your order.

Q4. Do you provide samples ? is it free or extra ?
A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.

custom cutting tools negotiated then we will quote the best sample cost.
