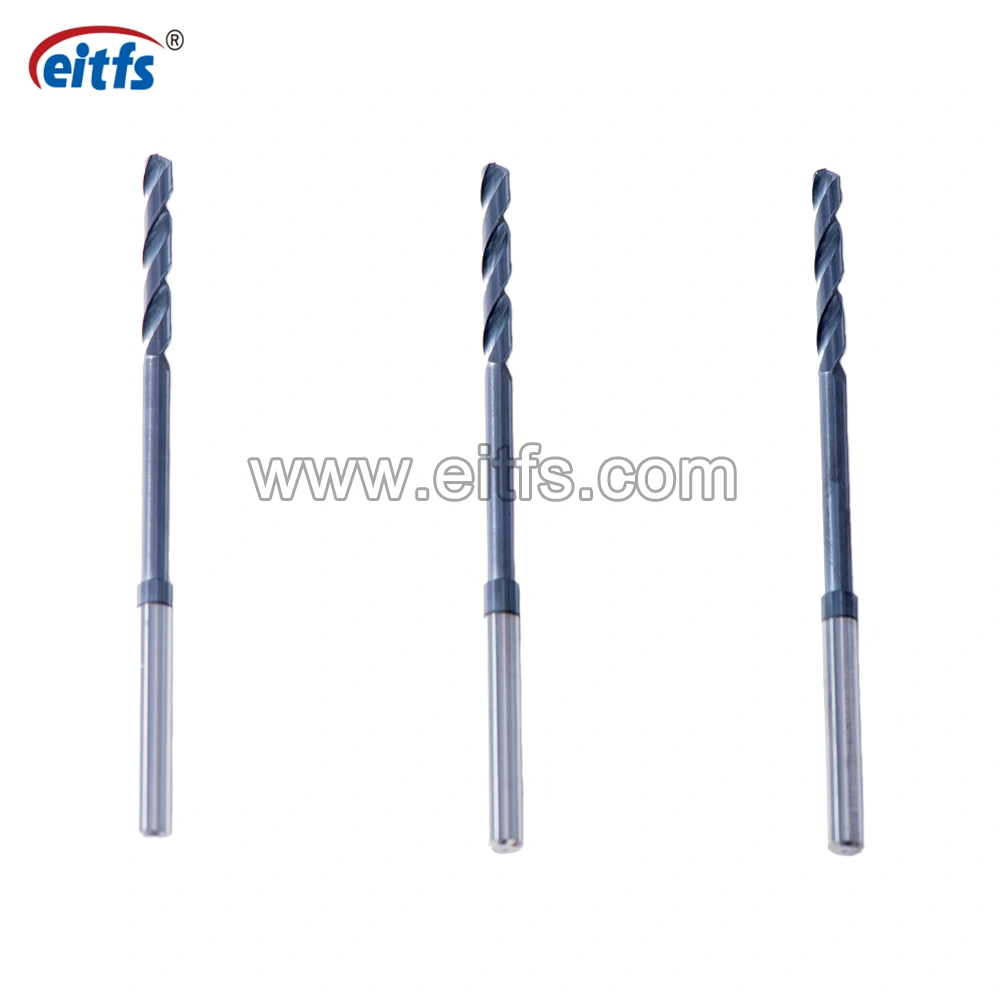

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

Product Description

8d CNC Cutting Tool Solid Carbide Drill Bit without Inner Coolant

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

About Us:

Changzhou Aitefasi Tool Co., Ltd. founded in 2004, is a high-tech manufacturer specialized in providing High-performance carbide cutting tools. Many high-performance equipments which are from Germany, USA and Switze produce high-quality cnc tools, including:

1. Tungsten Solid Carbide Drill Bits
Inner coolant and outer coolant drill bits.
Support 3XD, 5XD, 8XD, 20XD, even more length and customized accepts.
Twist drill, center drill, bottom drill and other types of drill bits.


2. Tungsten Solid Carbide End Mill
Square end mill, ball nose end mill and other End Mills.

3. Tungsten Solid Carbide Reamer
Twist and straight flute, with high precision and long life.

4. Customized CNC Toolings
Customized as requirements, ODM & OEM accepts.


Products Function:

Raw MaterialCarbide, Tungsten Cobalt Alloy, tungsten carbide
CoatingAlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or as your requirements
Overall Length38-330mm (customized is acceptable)
Flute Diameter0.3-40mm (customized is acceptable)
Diameter4-40mm (customized is acceptable)
Precision0.005-0.01 (high precision)
HRC45/50/55/65 HRC
Controlling Modecnc tooling system
Processing TypeFinishing Maching
Suitable forwood, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel, etc

Products Features:

1. Special Designed Drill Tip: Special designed drill tip will increase the Centering Ability and Chip breaker ability. Thus, the processing efficiency will be increased.

2. Much Sharper Cutting Edge: The much sharper cutting edge can decrease the cutting resistance and and torque. The lifetime of tools and machines will be longer.

3. Heat-resistant Coating: With highly heat-resistant HELICA/ALTIN coating, can be used for high-speed processing.

4. Smooth and Wide Flute:Smooth and wide flute will remove the cuttings more easily.

5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten.

6. Polished Surface Treatment: With high polished surface treatment, the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved.

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant


Products Detail:

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant
Solid Carbide Drill Bit-8D
d1d2L1L2L3L4Coolant solution
4.00-4.00475454228Outer Coolant
4.50-5.00690545036Outer Coolant
5.50-6.00697605736Outer Coolant
6.50-6.508106696636Outer Coolant
7.00-8.008116797636Outer Coolant
8.50-9.0010131908740Outer Coolant
9.50-10.0010139989540Outer Coolant
10.50-11.001215510910645Outer Coolant
11.50-12.001216311711445Outer Coolant
12.50-14.001418213613345Outer Coolant
14.50-16.001620415515248Outer Coolant
16.50-18.001822317417148Outer Coolant
18.50-20.002024419319050Outer Coolant
20.00-25.0025   56Outer Coolant

Customized Tools are Acceptable


Test Data:

1. Chip breaker ability

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

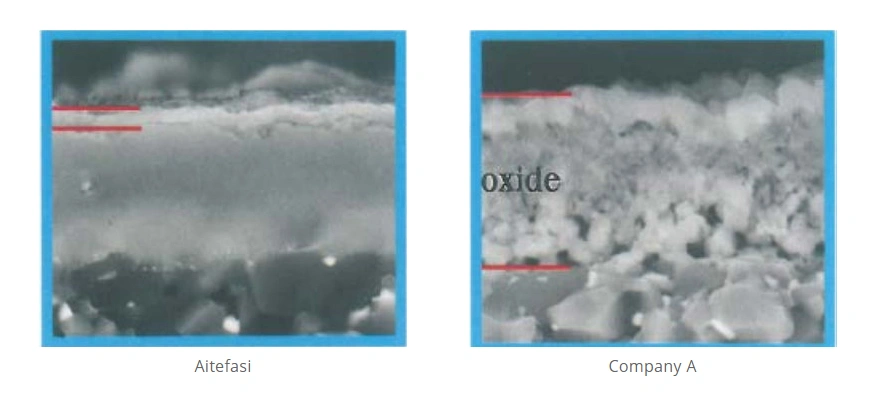

2. Perfect oxidation resistance in high temperature 1100ºC

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

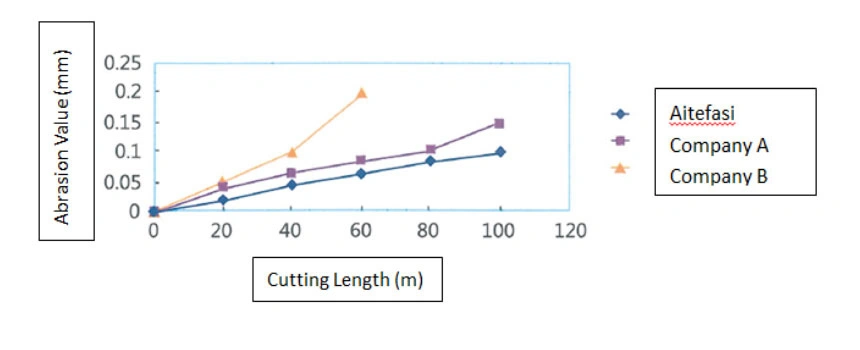

3. Abrasion condition of side cutting edge after processing 60m

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

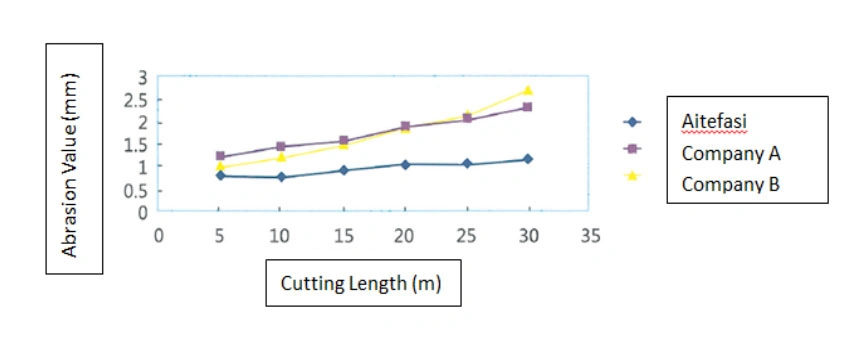

4. Abrasion condition of top cutting edge after processing 60m

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

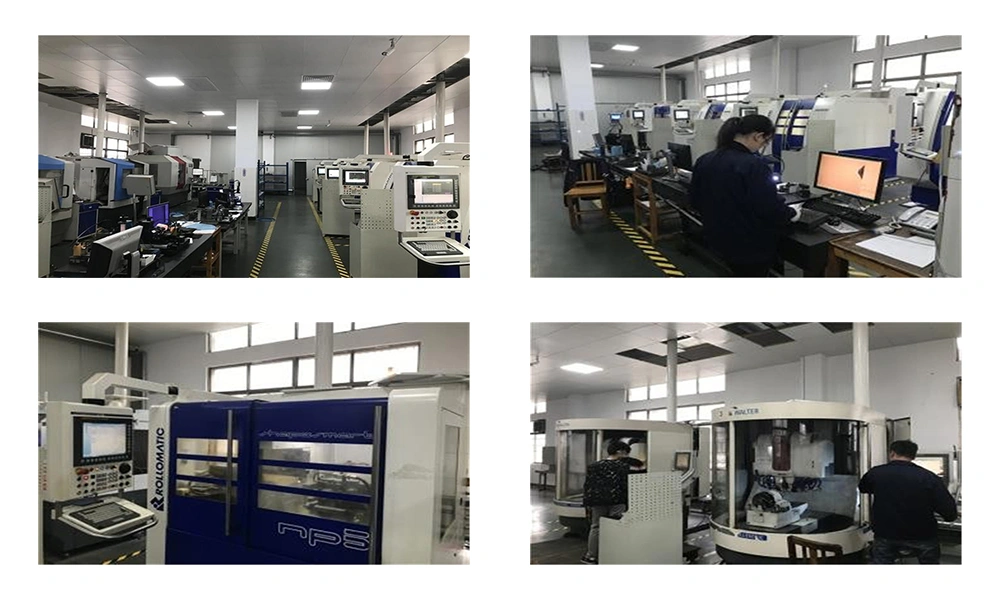

What We Have?

1. Imported production equipment

2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sets Star PTG6 from USA;
2 sets "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

2. Imported inspection equipment


1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

3. Strict quality control

Strict quality control process covers every step of production from the raw materials to the finished product, and provide strict quality warranty.


8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

Certification:

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant


Exhibition:

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

Package & Delivery:

8d CNC Cutting Tool Solid Carbide Drill Bit Without Inner Coolant

FAQ:

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you do the rest payment.

Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, ETC.

Q3. How about your delivery time?
A: Generally, It will take 10-15 days after receiving your advance payment. The specific delivery time depends on theitems and the quantity of your order.

Q4. Do you provide samples? is it free or extra?
A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.
custom cutting tools negotiated then we will quote the best sample cost
